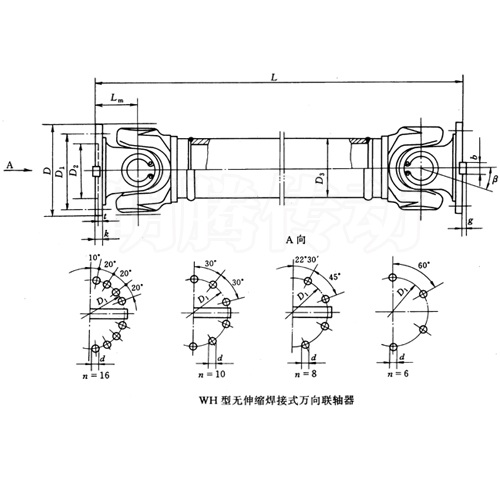

SWC-WH型無伸縮焊接式萬向聯軸器圖紙外形及安裝尺寸（JB/T5513-91）
型號 | 回轉 直徑 D | 公稱轉 矩Tn/ kN·m | 疲勞轉 矩Tf/ kN·m | 軸線折 角β/ (°)≤ | Lmin | D1 (js11) | D2 (H7) | D3 | Lm | n-d | k | t | b (h9) | g | 轉動慣量 I/kg·m2 | 質量m/kg | ||
Lmin | 增長100 | Lmin | 增長100 | |||||||||||||||
SWC100WH | 100 | 1.25 | 0.63 | 25 | 243 | 84 | 57 | 60 | 55 | 6-9 | 7 | 2.5 | - | - | 0.0039 | 0.00019 | 4.5 | 0.35 |
SWC120WH | 120 | 2.5 | 1.25 | 25 | 307 | 102 | 75 | 70 | 65 | 8-11 | 8 | 2.5 | - | - | 0.0096 | 0.00044 | 7.7 | 0.55 |
SWC150WH | 150 | 5 | 2.5 | 25 | 350 | 130 | 90 | 89 | 80 | 8-13 | 10 | - | - | 0.0371 | 0.00157 | 18 | 0.85 | |
SWC180WH | 180 | 12.5 | 6.3 | 25 | 480 | 155 | 105 | 114 | 110 | 8-17 | 17 | 5 | - | - | 0.15 | 0.007 | 48 | 2.8 |
SWC225WH | 225 | 40 | 20 | 15 | 520 | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9 | 0.365 | 0.0234 | 78 | 4.9 |
SWC250WH | 250 | 63 | 31.5 | 15 | 620 | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 0.847 | 0.0277 | 124 | 5.3 |
SWC285WH | 280 | 90 | 45 | 15 | 720 | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15 | 1.756 | 0.051 | 185 | 6.3 |
SWC315WH | 315 | 125 | 63 | 15 | 805 | 280 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15 | 2.893 | 0.0795 | 262 | 8 |
SWC350WH | 350 | 180 | 90 | 15 | 875 | 310 | 210 | 267 | 194 | 10-23 | 35 | 8 | 50 | 16 | 5.013 | 0.2219 | 374 | 15 |
SWC390WH | 390 | 250 | 125 | 15 | 955 | 345 | 235 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18 | 8.406 | 0.2219 | 506 | 15 |
SWC440WH | 440 | 355 | 180 | 15 | 1155 | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20 | 15.79 | 0.4744 | 790 | 21.7 |
SWC490WH | 490 | 500 | 250 | 15 | 1205 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 26.54 | 0.4744 | 1014 | 21.7 |
SWC550WH | 550 | 710 | 355 | 15 | 1355 | 492 | 320 | 426 | 305 | 16-31 | 50 | 12 | 100 | 22.5 | 48.32 | 1.357 | 1526 | 34 |
注：1.Tf為在交變負荷下按疲勞強度所允許的轉矩。 2. L為安裝長度，按需要確定。
